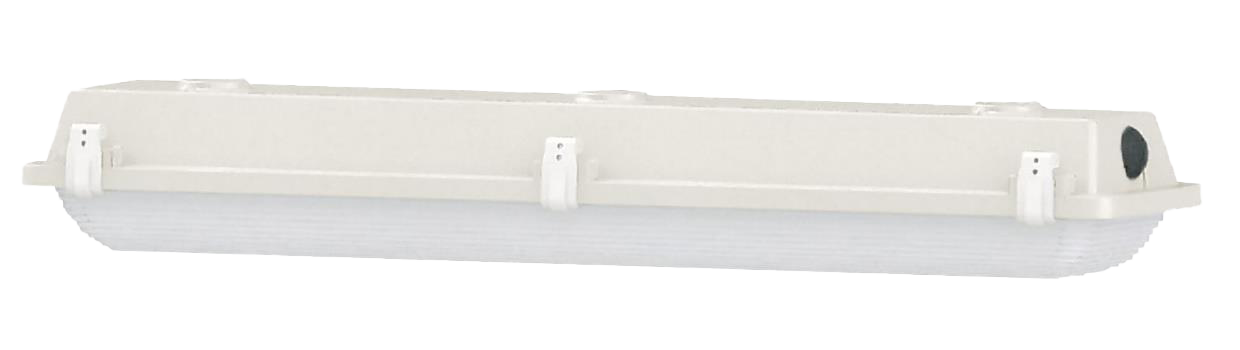

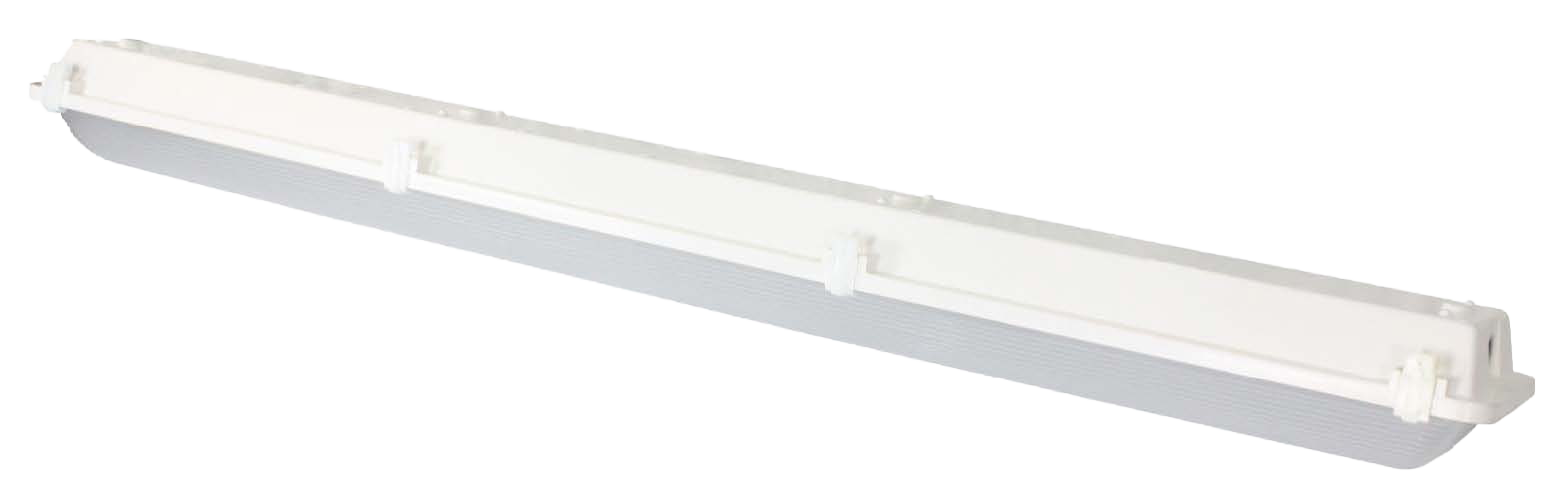

Vapor Tight LED Light Fixtures
The Dazor LED Vapor Tight Linear Fixtures are engineered for the harshest environments. Our new generation of LEDs provide you with the greater lumen output and improved energy efficacy.
With durable construction and long lasting components you are sure to cash in on the energy savings over the long life of this fixture. Designed to replace old inefficient fluorescent fixtures in cold storage, tunnels, manufacturing, or anywhere that dust or high moisture is an issue.
Key Features
- Mount in high or low spaces
- Rugged design built for even the toughest cold or warm climates
- Suitable for indoor or outdoor installation for ambient temperature -40°F to 140°F
- Color temperature: 4000K or 5000K
- IP65, IP66 and IP67 certified
- Heavy-duty fiberglass enclosure
- Frosted lineal ribbed lens
- Latches lock open during maintenance
- Captive keeper secures latch to housing preventing accidental loss of latch
- Simple bracket mounting system
- Protection fold-back circuit for ambient temperatures over 140°F
- Universal dimmable driver 120-277 VAC

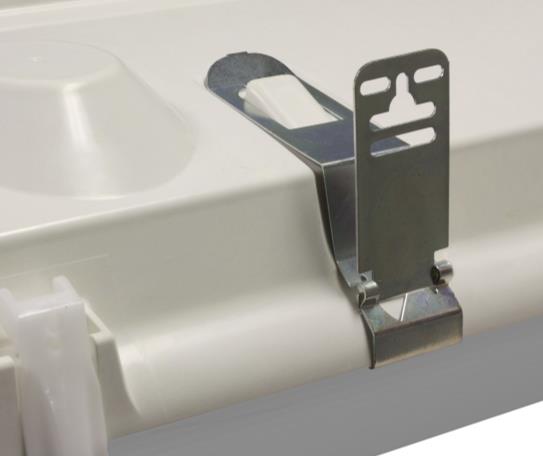

Mounting System
- Bracket snaps onto housing at multiple locations
- Reduces installation labor costs
- No holes drilled through housing
- UL Listed
Mounting Options
- Direct mount to ceiling or beam
- Pendant mount
- Chain hang or cable mount
- UL Listed
| Model No. | Length | Width | Wattage | Lumens | Color Temp |
|---|---|---|---|---|---|
| WL18000-4K | 2’ | 15" | 150 | 18600 | 4000K |
| WL18000-5K | 2’ | 15" | 150 | 19020 | 5000K |
| WL24000-4K | 4’ | 15" | 200 | 24800 | 4000K |
| WL24000-5K | 4’ | 15" | 200 | 25360 | 5000K |
