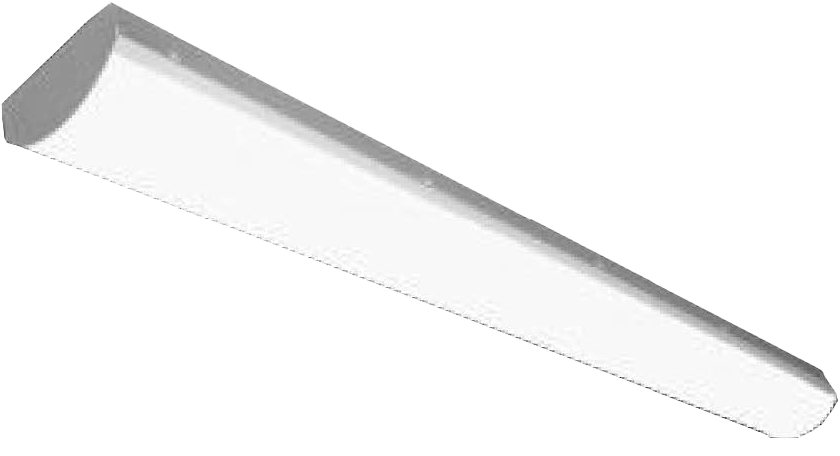

Linear - OC425W LED Series
Dazor’s OC425W fulfills the need for a standard width open channel strip fixture with a specialized lens in an economical package. Available in multiple lengths and customizable, Dazor’s OC425W fixture has a wide variety of industrial, warehouse, and retail applications.
Download Cut Sheet
Application
- Auditoriums & Cafeterias
- Convenience Stores
- Corporate / Office Buildings
- Convention Centers
- Correctional Facilities
- Distribution Facilities
- Factories & Warehouses
- Government & Municipal
- Healthcare Facilities & Hospitals
- Hotels & Casinos
- Libraries & Museums
- Military Bases
- Power Generation Facilities
- Repair & Service Centers
- Retail Locations & Supermarkets
- Schools / Colleges / Universities
Certifications
Standard Width and Body
The OC425W’s standard medium width of 5” will work for most common applications and location when retrofitting lighting.
Energy Efficient and Economical
Obtain the lighting you need from an energy efficient open channel strip fixture with a terrific price-to-performance ratio.
Great Lumen Output
Great lumen output with low energy consumption.
Wide Selection of Lamp Options
Create the lighting environment you need for your workplace. Choose the fixture lumen output based on your ceiling heights. Select between light color of 4000K or 5000K CCT based on your visual preference. Both color choices have a high color accuracy rating of 83 CRI.
Variety of Fixture Lengths
Choose one fixture style and have a consistent look with the same fixture in 4’ or 8’ lengths.
| Length (ft) | Wattage | Lumens | Efficacy | Suggested Height |
|---|---|---|---|---|
|
4 |
35 |
4725 |
135 |
4-8’ |
|
70 |
9450 |
135 |
6-12’ |
|
|
8 |
70 |
9450 |
135 |
6-12’ |
|
140 |
18900 |
135 |
12-25’ |
