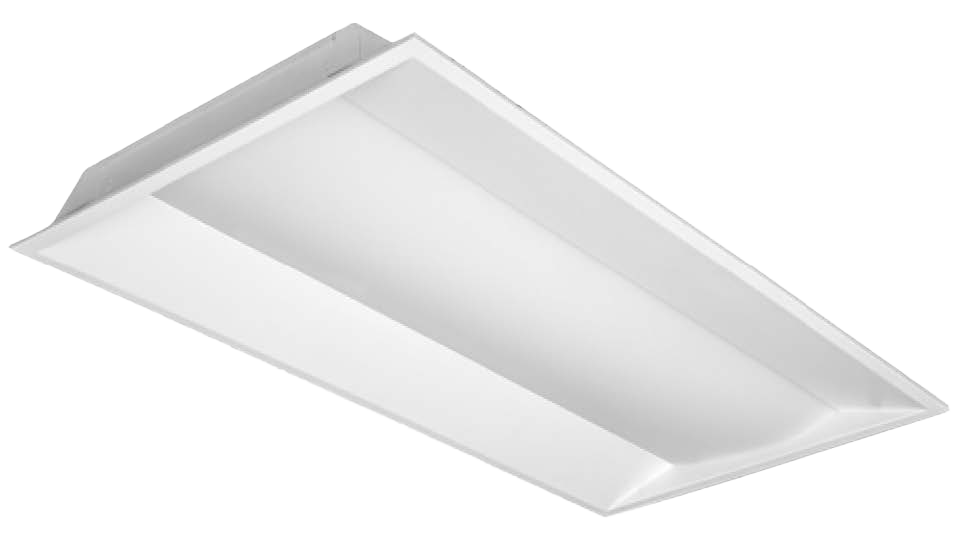

LED Office Troffer
Sleek, versatile LED Office Troffer is ideal for indoor environments where presentation and visual comfort are at a premium. Quality steel construction is designed to maximize heat distribution and cool operation. The attractive molded diffuser provides uniform light distribution and a pleasing aesthetic appeal. Corporate offices, retail outlets, indoor galleries, and other high end installations use the LED Office Troffer to minimize energy consumption while improving their lighting environments.
Download Cut Sheet
Optics
The LED Office Troffer is available in color temperatures of 4000K and 5000K. The luminaire’s 85+ CRI is ideal for professional indoor illumination, especially in environments requiring visual accuracy including office, design, manufacturing, or service.
Electrical
The luminaire outputs at an excellent efficacy of 126 Lm/W or greater with THD <10%. 20W, 30W, and 40W units are available. The fixture’s has an excellent L70 lifespan rated for 156,000 hours. Input voltage is a standard 120-277VAC.
Construction
The LED Troffer’s discreet, low-profile frame is fitted from sheet metal, and uses an efficient polycarbonate lens. The frosted diffuser is used to enhance consistency of light distribution. The slim design allows for versatile placement of the luminaire, even when recessed mounting is not available.
Mounting
The LED Troffer can be recessed in any standard sized grid ceiling. In non-grid type ceilings, the fixture may be installed via surface mount. Because of the fixtures slim profile, both mounting solutions are easily incorporated into interior design solutions.
Standard Features
Options
Finish
-
White
-
Custom
Sample Order: OTUS22-S-20W-4K
| Series | Dimension | Lens | Wattage | CCT | Generation | Options |
|---|---|---|---|---|---|---|
|
OTUS = Recessed Troffer |
22 = 2x2 |
-S = Solo Troffer |
-20= 20W |
-35 = 3500K |
-PE = Premium |
LOD = Bi-Level Sensor |

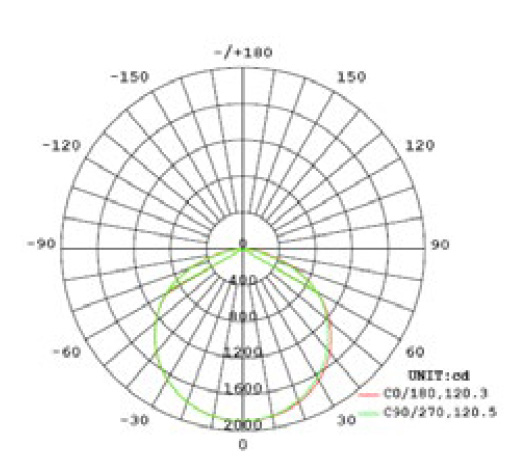

Performance Data
| Part No. | Watts (W) | Input Voltage (VAC) |
Efficacy (Lm/W) | Lumens(Lm) | CRI | CCT (K) | PF | THD | L70 (Hours) | Dimensions in Inches (L*W*H) |
|---|---|---|---|---|---|---|---|---|---|---|
| OTUS22-20W | 19.1 | 120-277 | 135 | 2700 | 85+ | 4000 5000 | >0.9 | <10% | 156,000 | 23.74*23.74*3.09 |
| OTUS22-30W | 30.5 | 120-277 | 135 | 4050 | 85+ | 4000 5000 | >0.9 | <10% | 156,000 | 23.74*23.74*3.09 |
| OTUS22-40W | 40.3 | 120-277 | 125 | 5000 | 85+ | 4000 5000 | >0.9 | <10% | 156,000 | 23.74*23.74*3.090 |
| OTUS24-30W | 30.0 | 120-277 | 135 | 4050 | 85+ | 4000 5000 | >0.9 | <10% | 156,000 | 23.74*23.74*3.09 |
| OTUS24-40W | 40.3 | 120-277 | 125 | 5000 | 85+ | 4000 5000 | >0.9 | <10% | 156,000 | 23.74*23.74*3.09 |
| Color | Housing | Lens Type | Certification | Warranty |
|---|---|---|---|---|
|
Matte White |
Sheet Metal |
Frosted |
ETL |
10 Years |
OTUS22-40W
OTUS24-40W
